OPEN BOX PRODUCT
The product is new and unused; only the original packaging has been opened. All original accessories are included, and the full 2-year manufacturer's warranty applies.

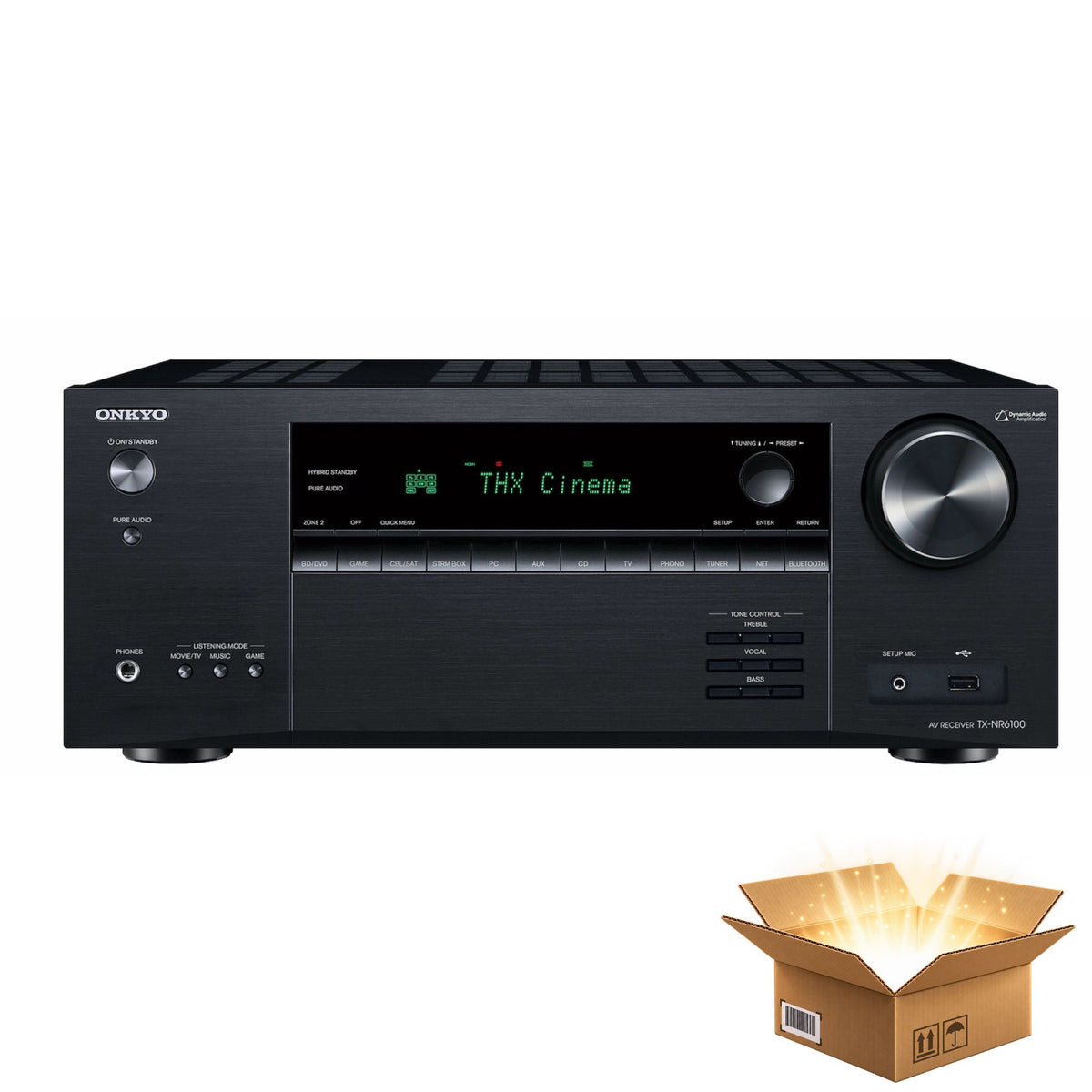

ONKYO TX-NR6100 – 7.2-CHANNEL AV HOME CINEMA RECEIVER
➡️ 100 W PER CHANNEL AND HDMI 2.1
The Onkyo TX-NR6100 combines powerful multi-channel amplification with modern HDMI 2.1 connectivity. Support for 8K video, 4K/120 Hz, HDR10+, and Dolby Vision allows for the connection of modern TVs, projectors, and gaming consoles.
➡️ SIMPLE SETUP AND OPERATION
The AccuEQ system automatically adjusts basic speaker settings based on the room and listening position. The receiver can also be controlled via the Onkyo Controller app on your phone or tablet.
➡️ THX CERTIFIED SELECT
The TX-NR6100 is a THX Certified Select AV receiver designed for precise and dynamic reproduction of cinema sound in a home environment. It also supports Dolby Atmos and DTS:X for immersive surround sound.
➡️ ACCUEQ AND ACCUREFLEX CALIBRATION
AccuEQ detects speaker size, distance from the listening position, volume levels, and crossover frequency. AccuReflex helps optimize phase alignment when using Dolby Atmos-enabled speakers.
➡️ MUSIC STREAMING
Built-in network connectivity provides access to Spotify, TIDAL, Deezer, TuneIn, and other supported platforms. Music can be controlled via compatible apps or the Onkyo Controller app.
➡️ WORKS WITH SONOS
With the addition of a Sonos Port, you can integrate the TX-NR6100 into an existing Sonos multi-room system. The receiver can automatically wake up and switch to the correct input when playback begins.
➡️ KLIPSCH OPTIMIZED MODE
Klipsch Optimized Mode allows for easier setup of compatible Klipsch speakers by using preset crossover values based on the selected speaker model.
➡️ ONKYO TX-NR6100 DAB+ SPECIFICATIONS
• 7.2-channel THX Certified Select AV Receiver
• Power output: 100 W/channel (8 Ω, 20 Hz–20 kHz, 0.08% THD, 2 channels driven)
• Max. effective power: 210 W/channel (6 Ω, 1 kHz, 10% THD, 1 channel driven)
• Dolby Atmos and DTS:X
• Supports up to 5.2.2-channel configuration
• AccuEQ room acoustic calibration
• AccuReflex phase correction for Dolby Atmos speakers
• THX Certified Select
• Klipsch Optimized Mode
• Works with Sonos
• Chromecast built-in, AirPlay 2 and DTS Play-Fi
• Spotify, Amazon Music, TIDAL, Deezer, TuneIn and other supported services
• Dual-band Wi-Fi 2.4 GHz / 5 GHz
• Bi-directional Bluetooth
• Bluetooth RX: SBC / AAC
• Bluetooth TX: SBC / aptX / aptX HD
• HDMI 2.1 with 8K/60 Hz and 4K/120 Hz support
• VRR, ALLM, QFT, DSC, QMS and eARC
• HDMI Sub/Zone 2 output
• Powered Zone 2
• Phono MM input
➡️ AMPLIFIER
• Power output: 100 W/channel (8 Ω, 20 Hz–20 kHz, 0.08% THD, 2 channels driven)
• 210 W/channel (6 Ω, 1 kHz, 10% THD, 1 channel driven)
• Dynamic power: 240 W at 3 Ω / 210 W at 4 Ω / 120 W at 8 Ω
• THD+N: 0.08% (20 Hz–20 kHz, half power)
• Input sensitivity: 200 mV / 47 kΩ (Line)
• Phono MM: 3.5 mV / 47 kΩ
• Frequency response: 10 Hz–100 kHz (+1/-3 dB)
• Signal-to-noise ratio: 106 dB (Line, IHF-A)
• Phono signal-to-noise ratio: 80 dB (IHF-A)
• Speaker impedance: 4–16 Ω
➡️ TUNER
Since you have the European DAB+ model, I would emphasize the following:
• FM radio
• DAB / DAB+ digital radio
• Radio station presets
I would remove the AM data from the US datasheet for a European DAB+ product, unless the European version explicitly supports it.
➡️ INCLUDED ACCESSORIES
• Microphone for AccuEQ setup
• Remote control
• 2× AAA batteries
• FM/DAB antenna or antenna included with the European version
• Quick start guide
➡️ GENERAL
• Power consumption (operational): 635 W
• Power consumption (standby): 0.1 W
• Dimensions (W × H × D): 435 × 173.5 × 379.5 mm
• Weight: 9.8 kg
• Packaging dimensions: 534 × 265 × 468 mm
• Weight with packaging: 12.5 kg
